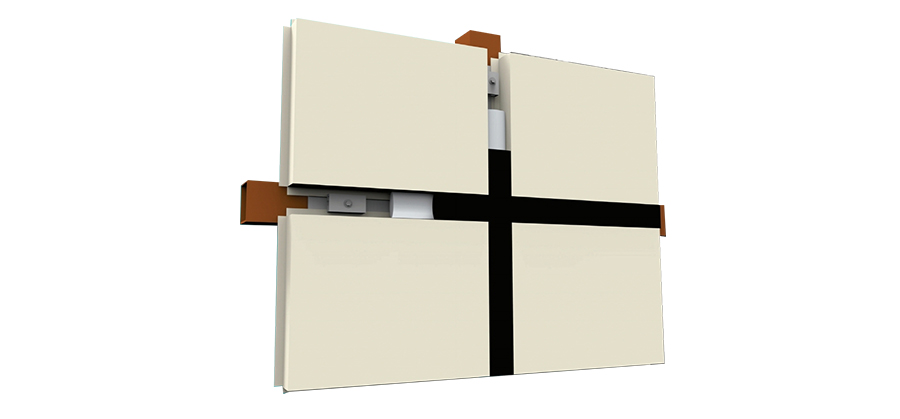

Cameo Seismic panel
- Vibration resistant panel application technology.
- Application of seismic panels for absorbing vibration loads in column section.
- Easy install type Seismic subsidiary materials.
- Securing buffer performance when vibration occurs between metal panel and main pipe.
- Easy installation type improvement of construction speed.
Seismic Performance Test and Report
Patent Certificate 1
Patent Certificate 2
Seismic test report 1
Seismic test report 2
Seismic test report 3
Necessity of Cameo Seismic Panel
- Increasing number of earthquakes in Korea. The number of earthquakes in Korea is rapidly increasing from only six in 1978 to 46 in 2008 and 223 in 2017, and the number of earthquakes with magnitude 3.0 or higher is also increasing rapidly to five in 1978, 10 in 2008, and 15 in 2020.
- Amount of damage incurred. 2017 Pohang magnitude 5.4 earthquake damage recovery cost: KRW 144.5 billion The first expansion damage amount is 54.5 billion won, and the second damage amount is about 60 billion won.46 Aftershocks damage amounts to about 11 billion won.
- Poor earthquake resistance performance. The earthquake resistance rate of domestic public facilities is 43.7%, and among the 6.98 million private buildings nationwide, only about 7% of the 480,000 buildings have earthquake resistance.
- Defect occurred. Defects such as corrosion of the assembly and member detachment occur when using the screw fixing method → panel life span is shortened.
- A variety of problems. If the direct fixing method is adopted, there is a risk of delay in construction speed, safety accidents (electricity, fire). Problems such as difficulty in securing quality due to differences in proficiency and corrosion of panel perforation part are occurring.
- Lack of stability. When the direct fixing method is adopted, it lacks stability in case of fatigue resistance such as earthquakes and strong winds.

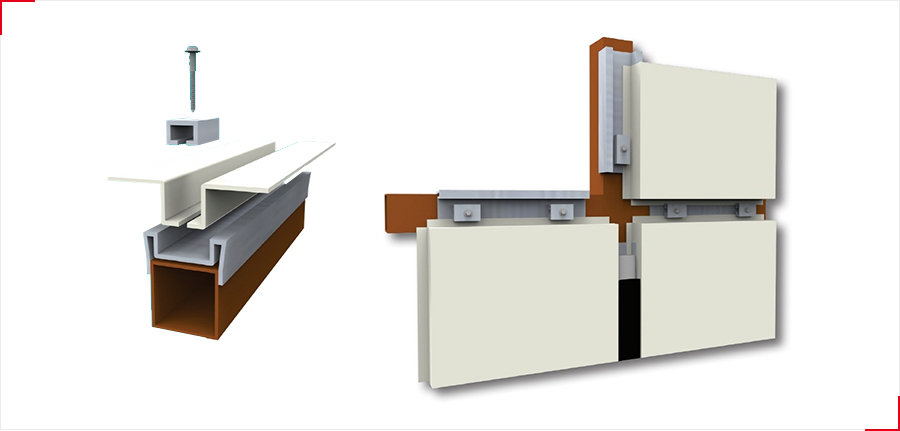

Assembly of Seismic Panel
1Seismic bracket
2Seismic panel
3Seismic cap + Bolt fixation
4Construction Completed

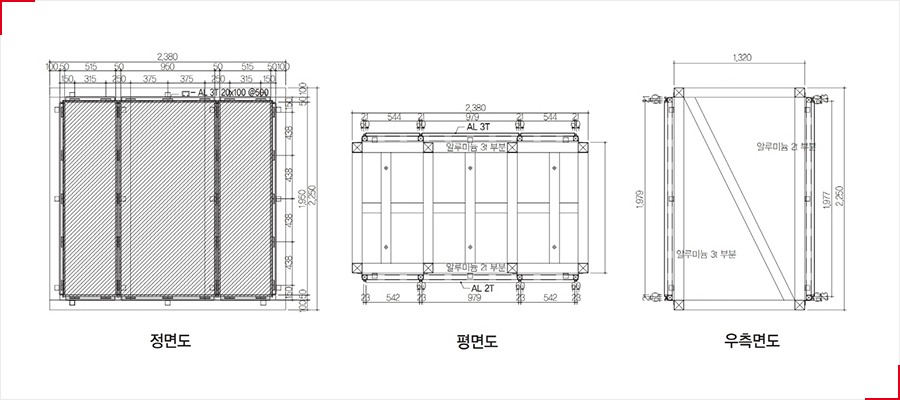

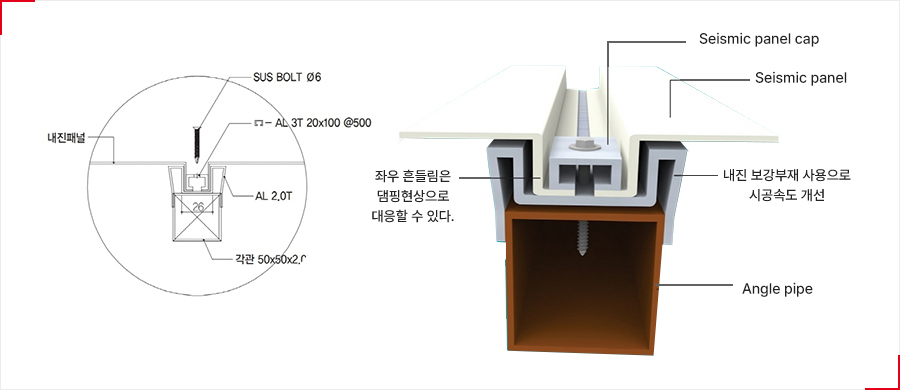

Construction Details of Seismic panel

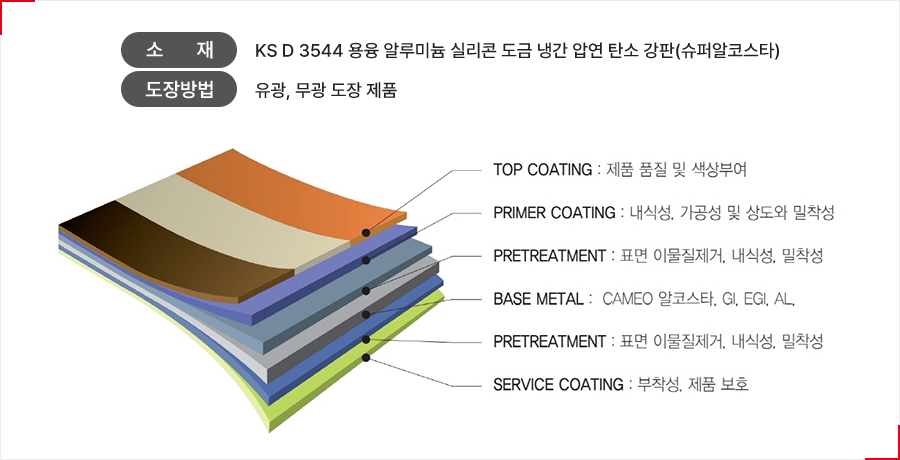

Cameo Seismic Panel Sheet Resources
CAMEO Seismic Panel Sheet is a corrosion-suppressing material that is three times more durable than regular materials. There are no cracks in the paint during various processing and molding, and conditional composite corrosion tests show that it is three times better than regular aluminum-plated steel sheets and ten times better than galvanized steel sheets.

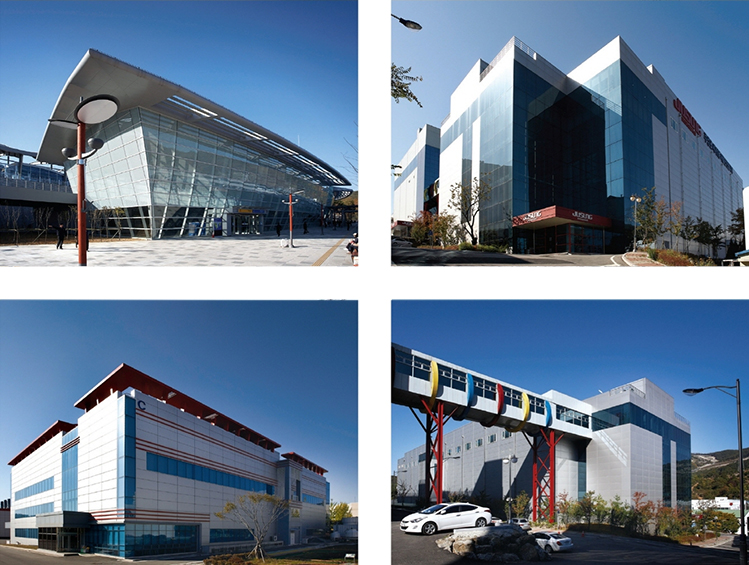

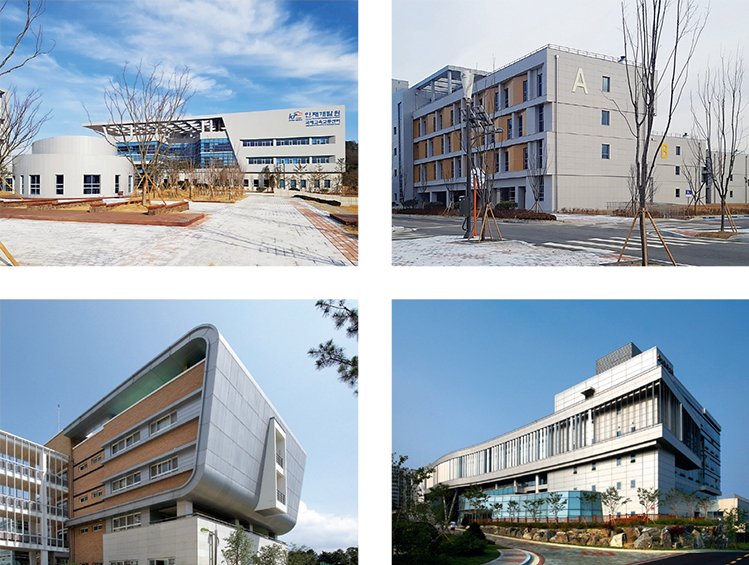

Application of Cameo Seismic Panel Sheet
